Contact Auxiliar, LA1-DN11, Configurare 1NO / 1NC
Disponibil în stoc
-
Livrare estimata : 07 Sun - 11 Thu
Contact auxiliar 1NO/1NC pentru contactori seria LC1D
Contactul auxiliar LA1-DN11 extinde functionalitatea contactorilor magnetici din seria LC1D si LP1D, permitand comanda si semnalizarea circuitelor secundare. Configuratia 1NO/1NC ofera flexibilitate maxima in automatizari industriale si instalatii electrice profesionale. Compatibil cu peste 18 modele de contactori, se monteaza lateral in cateva secunde fara scule speciale.
Ce obtii cu acest produs
- Extindere rapida a contactorului existent — montare laterala prin clip, fara demontare din tablou electric
- Configuratie mixta 1NO/1NC — un contact normal deschis si unul normal inchis pentru semnalizare si comanda simultan
- Compatibilitate garantata cu seria LC1D09-LC1D150 si LP1D09-LP1D50 — inlocuire directa fara adaptoare
- Capacitate de comutare 10A la 750V AC — potrivit pentru circuite auxiliare de putere si semnalizare
- Constructie conform IEC 947, IEC 337-1, BS 4794 — fiabilitate pe termen lung in medii industriale
- Instalare reversibila stanga/dreapta — adaptare la configuratia tabloul electric existent
Cum functioneaza si cum se instaleaza

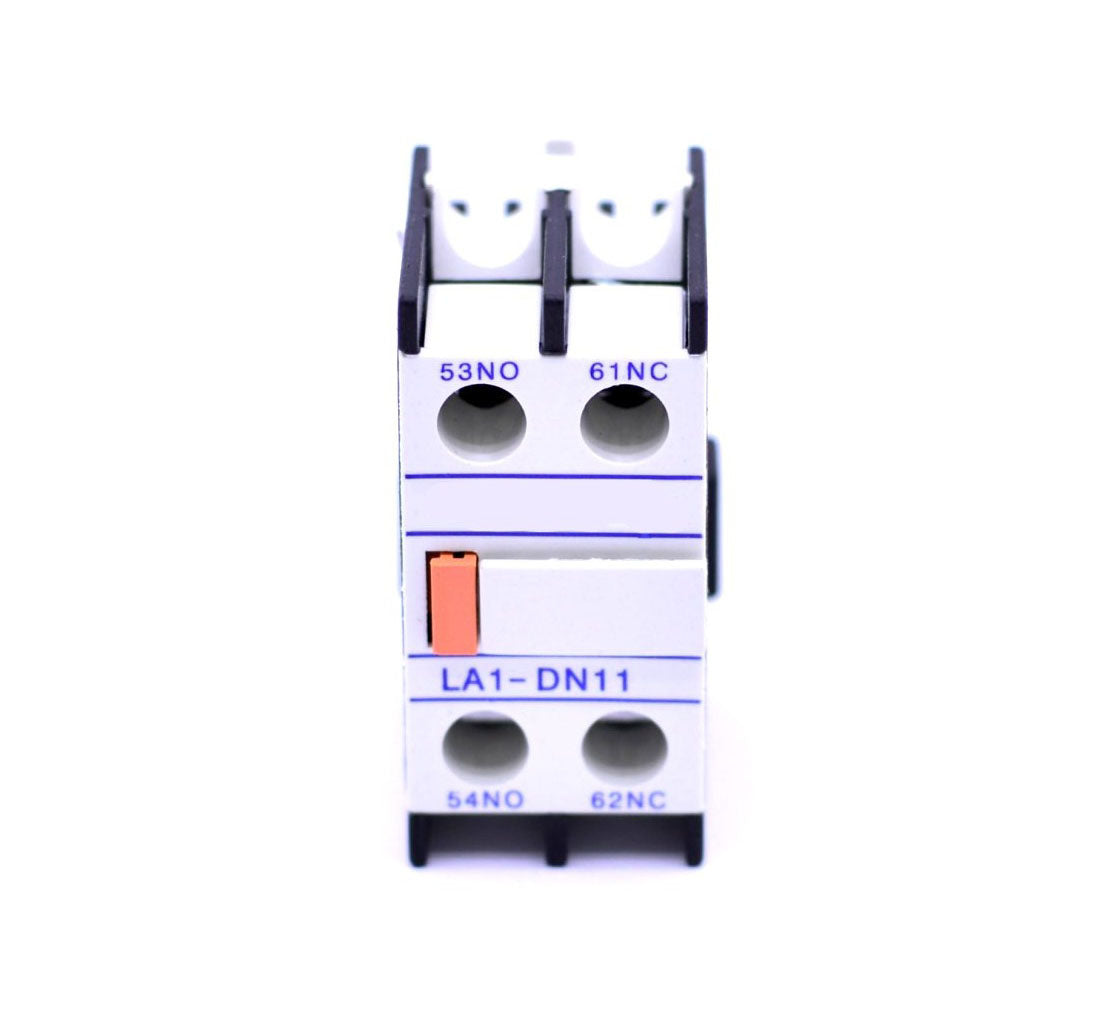

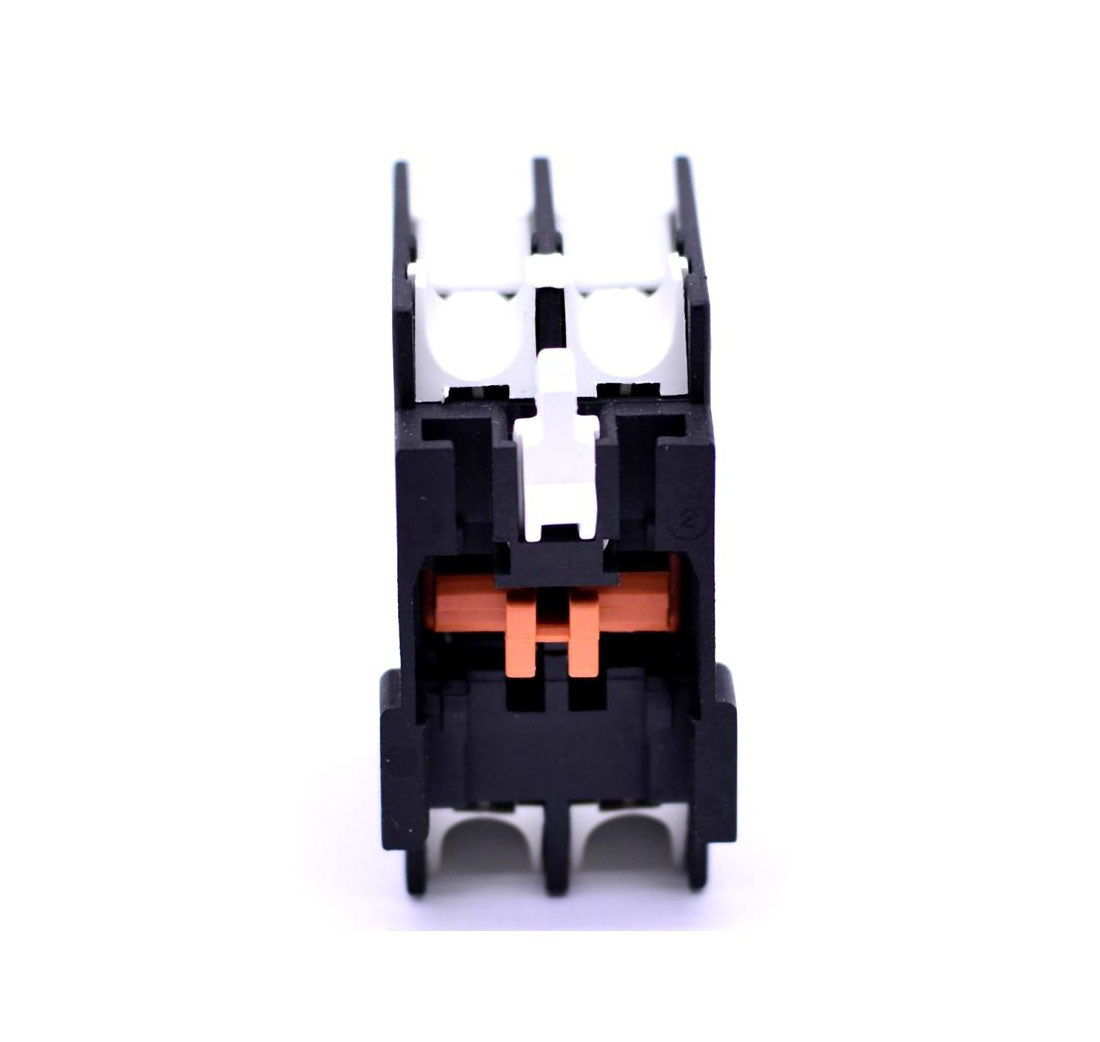

Contactul auxiliar se fixeaza lateral pe corpul contactorului magnetic printr-un sistem de prindere mecanica rapida. Contactele NO si NC comuta sincron cu bobina contactorului principal, permitand controlul lampilor de semnalizare, releelor temporale sau circuitelor de blocare. Conexiunile se realizeaza prin bornele cu surub marcate 53NO, 61NC, 54NO, 62NC conform schemei standard. Nu necesita alimentare separata si se poate adauga sau inlatura oricand fara a afecta functionarea contactorului principal.
Intrebari frecvente
Pot monta contactul auxiliar pe un contactor deja instalat in tablou?
Da, contactul se prinde lateral prin clip fara a fi nevoie sa deconectezi sau sa scoti contactorul din sina DIN. Operatiunea dureaza sub un minut.
Ce inseamna configuratia 1NO/1NC si cum o folosesc?
Ai un contact normal deschis care se inchide la comanda si unul normal inchis care se deschide. Poti comanda o lampa de stare PE si una de stare OPRIT simultan din acelasi bloc auxiliar.
Contactul auxiliar functioneaza si la contactorii LP1D?
Da, este compatibil atat cu seria LC1D cat si cu LP1D de la 09 pana la 50, montarea fiind identica pe ambele game.

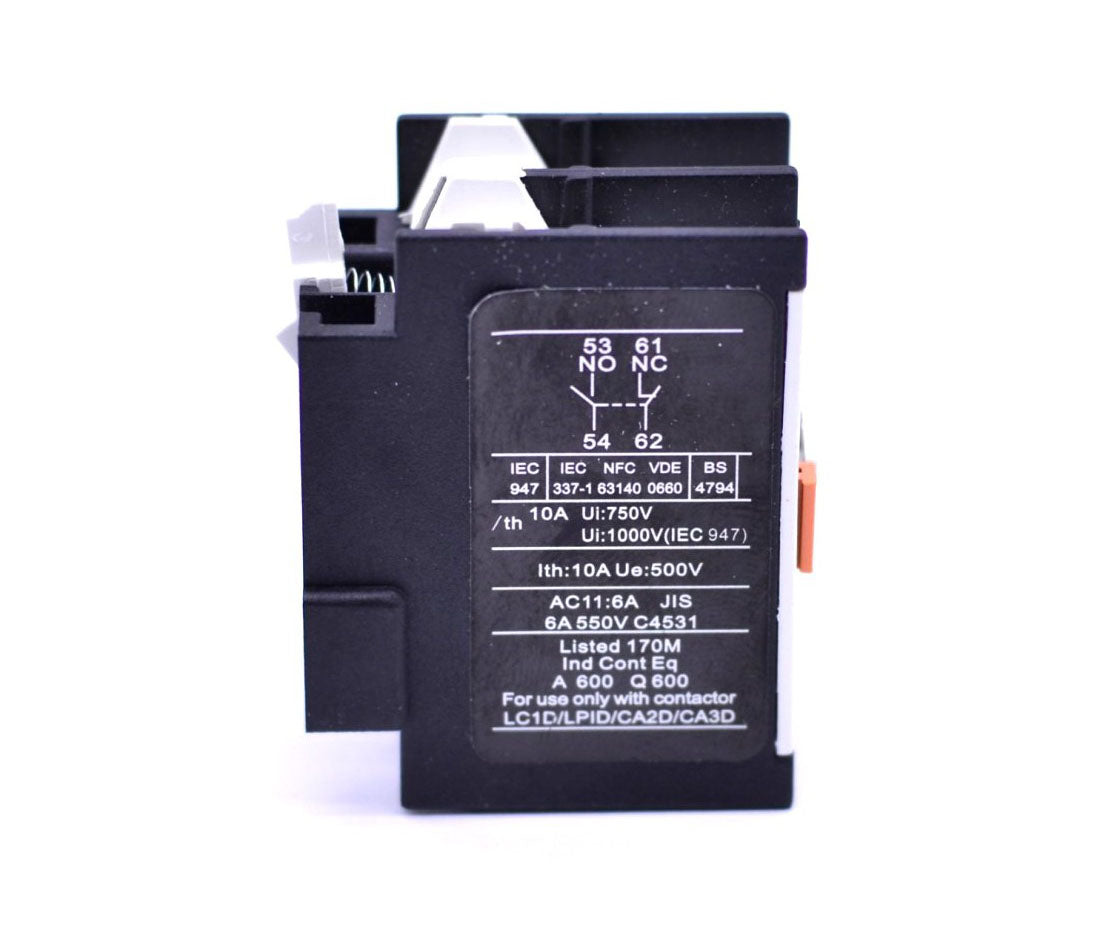

Specificatii tehnice
| Model | LA1-DN11 |
| Configuratie contacte | 1NO + 1NC |
| Capacitate comutare | 10A la 750V AC / 10A la 500V AC (Ith) |
| Tensiune izolare | 1000V conform IEC 947 |
| Durata de viata mecanica | 170M cicluri |
| Standarde conformitate | IEC 947, IEC 337-1, IEC 63140 0660, BS 4794, JIS C4531 |
| Capacitate contacte AC11 | 6A la 550V |
| Contactori compatibili | LC1D/LP1D 09/12/18/25/32/38/40/50/65/80/95/115/150 |
| Montaj | Lateral prin prindere mecanica |
| Marcaj borne | 53NO, 54NO, 61NC, 62NC |
Garantie si suport
Produsul beneficiaza de garantie 24 de luni conform legislatiei romane pentru defecte de fabricatie. Drept de retur in 30 de zile de la receptie. Livrare rapida prin curier national cu confirmare telefonica. Instalarea trebuie efectuata de personal autorizat conform normelor de electrosecuritate in vigoare.
