Comutator Rotativ 5 Came 1-0-2 / 20A - D505/5
Disponibil în stoc
-
Livrare estimata : 07 Sun - 11 Thu

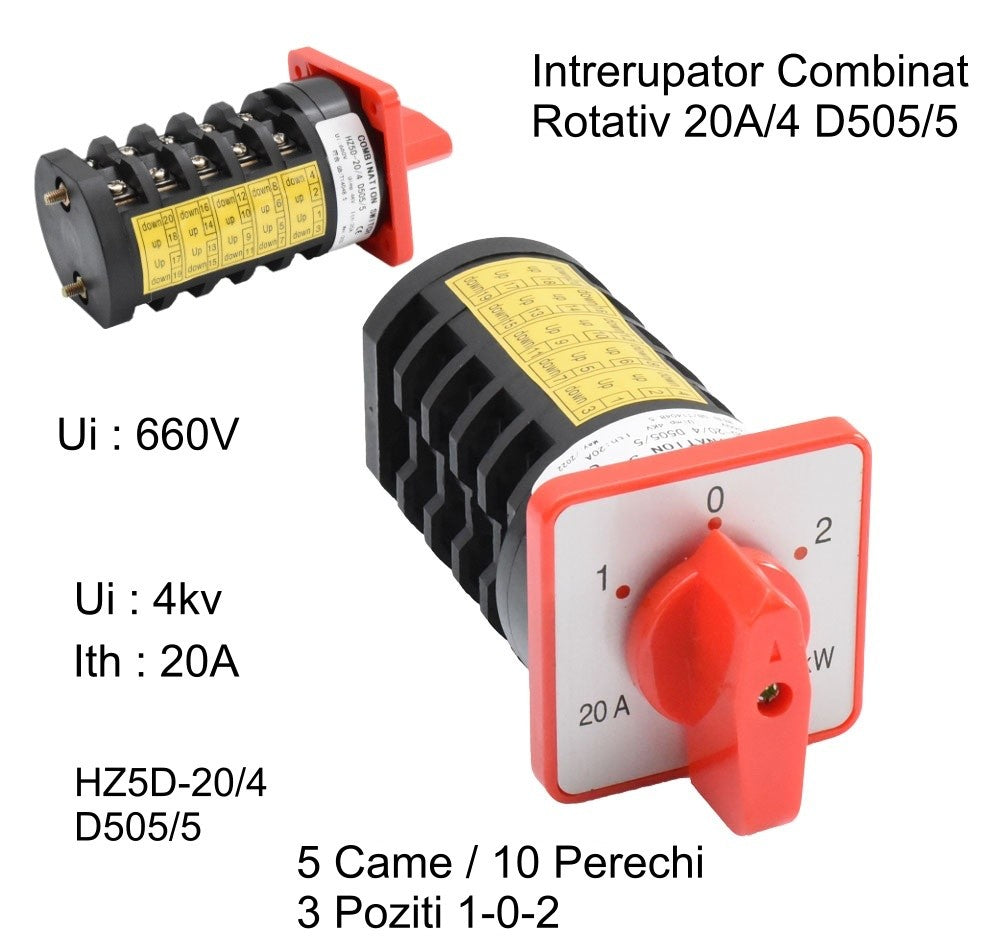

Comutator rotativ industrial 20A cu 5 came si 3 pozitii
Comutatorul rotativ D505/5 cu configuratie 1-0-2 este solutia profesionala pentru controlul sigur al echipamentelor industriale pana la 4kW. Cu 10 perechi de contacte si constructie robusta, asigura comutarea fiabila intre doua circuite electrice separate, ideal pentru utilaje, motoare si linii de productie. Maneta vizibila cu 3 pozitii clare garanteaza operare sigura si control intuitiv.
Ce obtii cu acest produs
- Control precis intre 2 circuite separate cu pozitie neutra de siguranta (0) care intrerupe alimentarea completa
- Capacitate industriala de 20A la 660V, suficienta pentru motoare si echipamente pana la 4kW
- Fiabilitate garantata pentru minimum 1.000.000 cicluri de comutare, rezista utilizarii intensive zilnice
- Montaj simplu in panouri electrice prin decupare de 51mm diametru, fara scule speciale necesare
- Protectie IP42 dupa montare impotriva prafului si stropilor, potrivit pentru medii industriale
- 10 perechi de contacte permit conectarea simultana a multiple circuite de comanda si forta
Cum functioneaza si cum se instaleaza

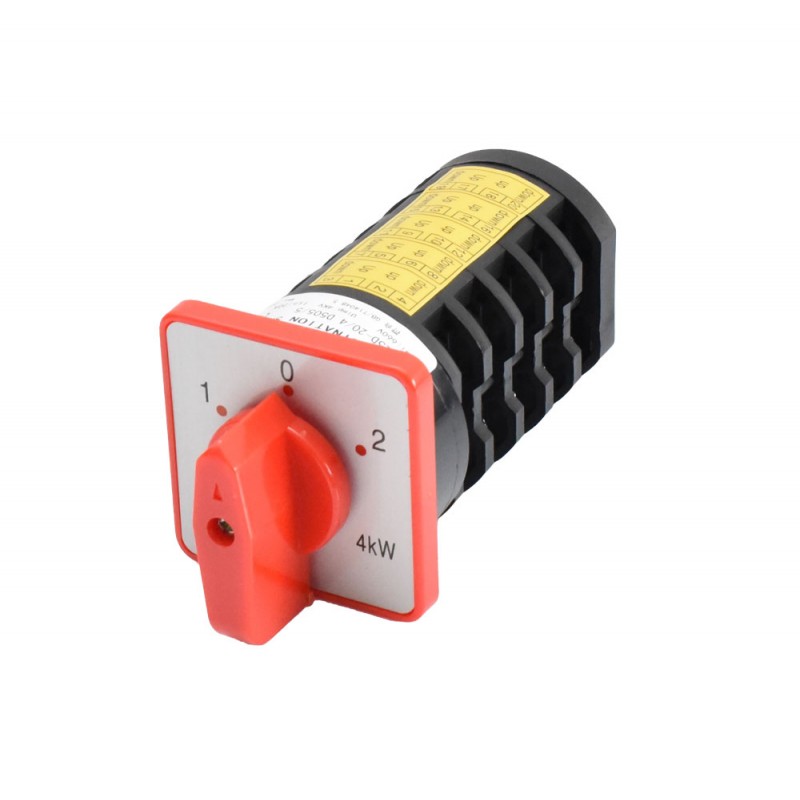

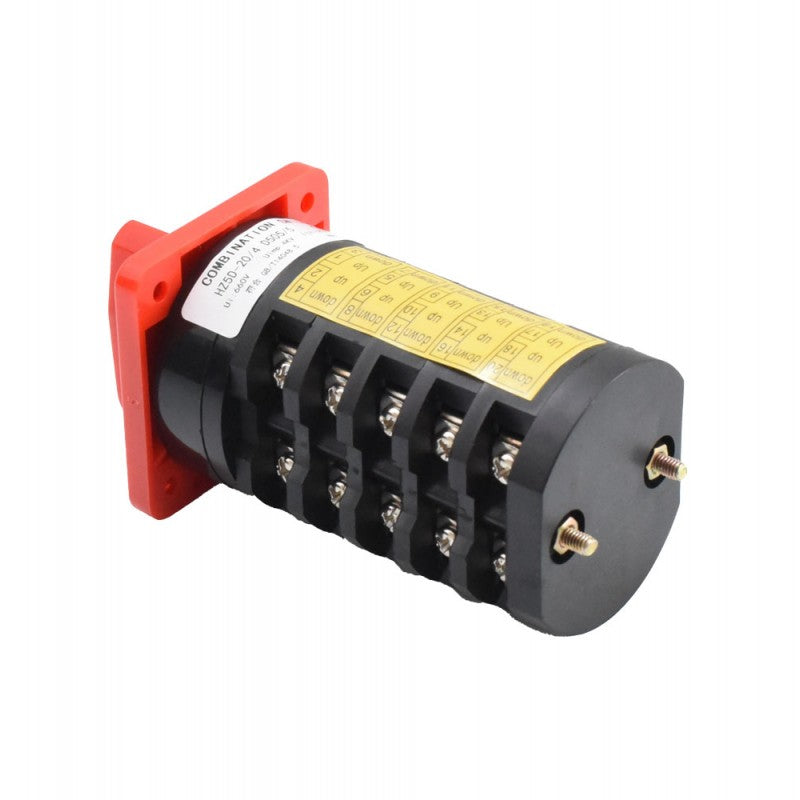

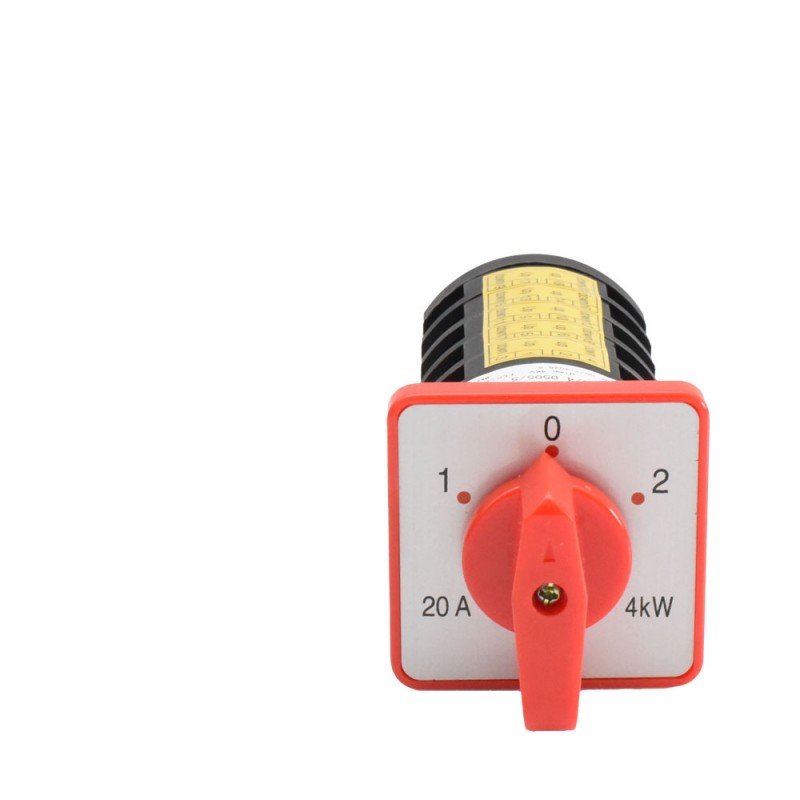

Comutatorul functioneaza prin rotirea manetei rosii intre 3 pozitii: 1 (circuit activ), 0 (neutru - toate circuitele intrerupte), si 2 (circuit alternativ activ). Fiecare pozitie activeaza sau dezactiveaza anumite perechi din cele 10 contacte, conform schemei de came. Instalarea necesita decuparea unui orificiu de 51mm in panoul electric, introducerea comutatorului si fixarea cu piulita inclusa. Conexiunile electrice se realizeaza prin bornele cu surub, clar marcate conform schemei de pe eticheta produsului. Recomandam verificarea configuratiei contactelor cu un multimetru inainte de conectarea definitiva.
Intrebari frecvente
Ce inseamna configuratia 1-0-2 si cum o folosesc?
Configuratia 1-0-2 inseamna ca ai 3 pozitii ale manetei: pozitia 1 alimenteaza primul circuit, pozitia 0 intrerupe tot (siguranta), iar pozitia 2 alimenteaza al doilea circuit. Este ideal pentru comutarea intre doua surse sau doua regimuri de functionare ale unui utilaj.
Pot folosi comutatorul pentru tensiuni mai mici de 660V?
Da, tensiunea nominala de 660V este valoarea maxima admisa. Poti folosi comutatorul la orice tensiune mai mica (220V, 380V, 400V) fara probleme, capacitatea de curent ramanand 20A.
Ce inseamna 5 came si 10 perechi de contacte?

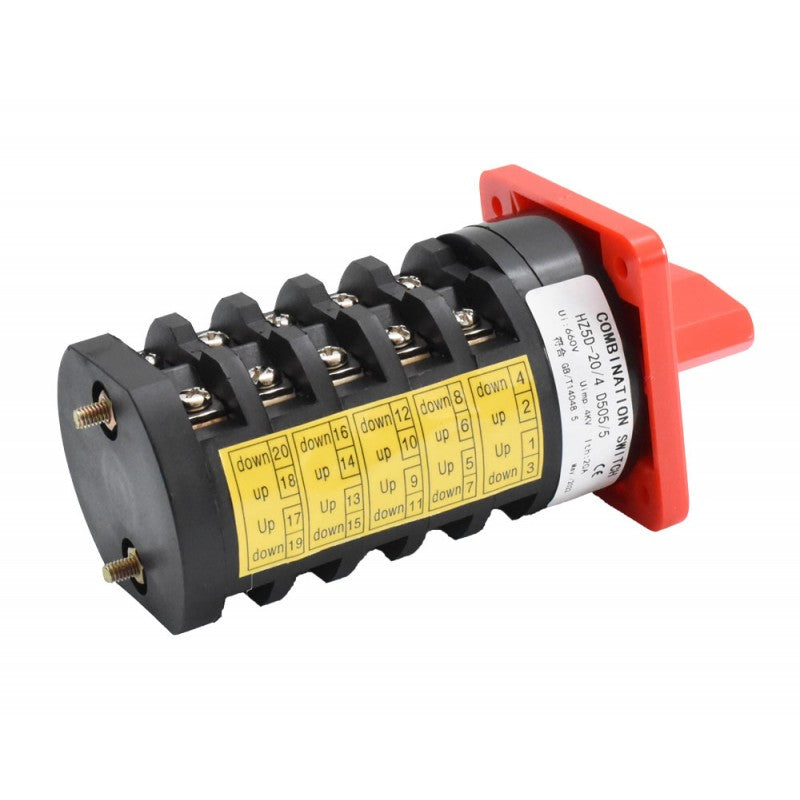

Cele 5 came sunt discurile interne care actioneaza contactele electrice. Cele 10 perechi de contacte (20 terminale in total) iti permit sa controlezi simultan mai multe circuite dintr-o singura miscare a manetei, util pentru automatizari complexe.
Specificatii tehnice
| Amperaj nominal | 20A |
| Putere maxima | 4kW |
| Tensiune nominala | 660V AC |
| Configuratie | 1-0-2 (3 pozitii) |
| Numar came | 5 |
| Numar contacte | 10 perechi |
| Curent nominal AC-15 | 1,5A la 380V |
| Curent nominal DC-13 | 0,14A la 220V |
| Grad protectie | IP42 (dupa montare) |
| Diametru decupare | 51mm |
| Dimensiuni totale | 130/95 x 60 x 60mm |
| Temperatura functionare | -2°C pana la +70°C |
| Fiabilitate | 1.000.000 cicluri de comutare |
| Tip borne | Cleme cu surub |
| Material |
