Buton Push 30mm cu Retinere 24V Led Rosu
Disponibil în stoc
-
Livrare estimata : 07 Sun - 11 Thu

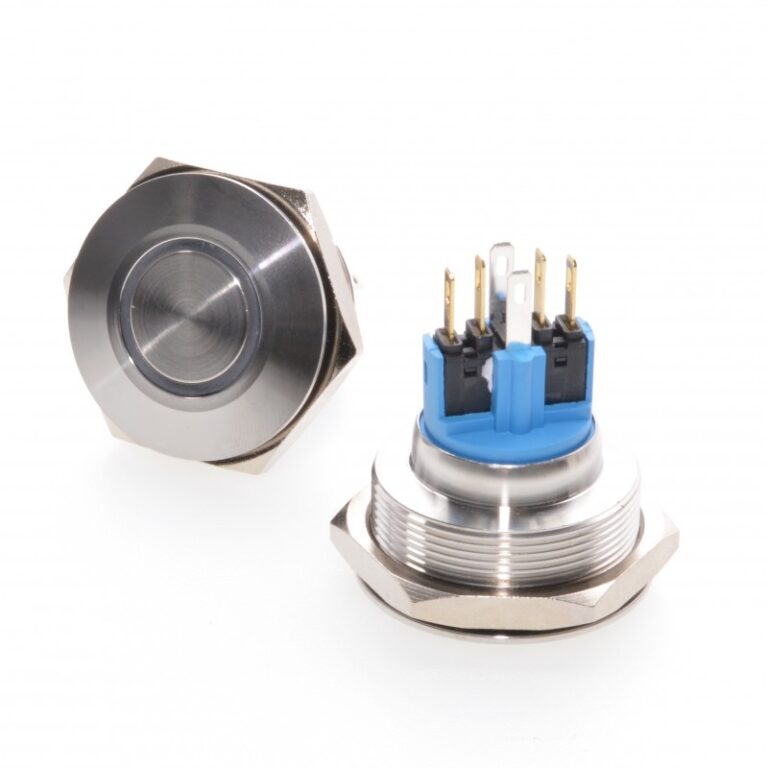

Buton push 30mm cu retinere si LED rosu 24V
Butonul push metalic 30mm cu retinere si iluminare LED rosie la 24V este conceput pentru panouri de comanda industriale, echipamente tehnice si aplicatii unde durabilitatea conteaza. Carcasa din otel inoxidat, rezistenta la vandalism si protectie IP67 il fac potrivit atat pentru interior cat si pentru exterior. Conexiunea prin 6 pini permite configurarea contactului NO sau NC in functie de schema electrica a instalatiei.
Ce obtii cu acest produs
- Actiune mecanica cu retinere — butonul ramane apasat pana la urmatoarea apasare, ideal pentru circuite de pornire/oprire

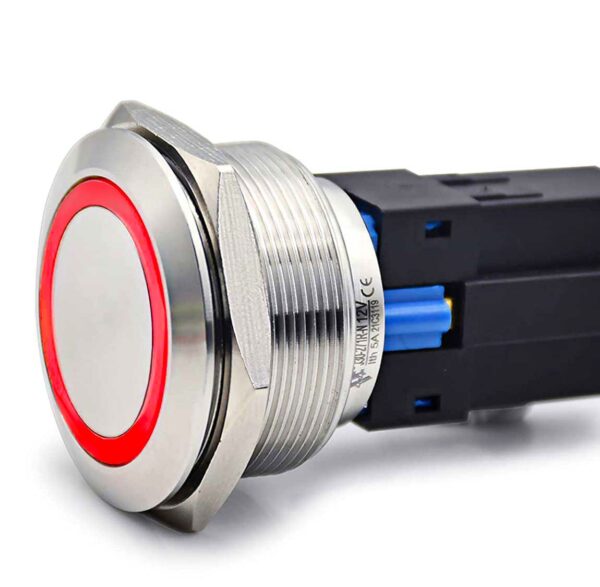

- Iluminare inel rosu LED la 24V — vizibilitate clara a starii active, chiar si in conditii de lumina scazuta
- Corp metalic antivandal din otel inoxidat cu protectie IK09 — rezista la socuri mecanice si utilizare intensiva
- Etansare IP67 — protejat complet impotriva prafului si a imersiei temporare in apa, fara degradarea contactelor
- Flexibilitate de conectare — 4 pini de contact (1NO + 1NC) si 2 pini dedicati LED, compatibil cu majoritatea schemelor de automatizare
- Contacte din aliaj de argint cu rezistenta la contact de max 50 mOhm — conductivitate stabila pe termen lung
Cum functioneaza si cum se instaleaza
Butonul se monteaza intr-un panou sau carcasa prin gaura de 30mm, se fixeaza cu piulita detasabila inclusa si se etanseaza cu inelul de cauciuc atasat. Conectarea se realizeaza prin conectorul cu 6 pini: 2 pini pentru alimentarea LED-ului si 4 pini pentru contactele NO si NC. Nu este necesara sculatura speciala — filetul M30 si piulita de prindere asigura fixare ferma in panouri cu grosime standard, fara interventia unui electrician autorizat pentru montajul mecanic propriu-zis.
Intrebari frecvente
Mufa de conectare este inclusa in pachet?
Nu, mufa cu 6 pini nu este inclusa si trebuie achizitionata separat. In pachet se gaseste doar butonul push cu piulita si inel de etansare.
Poate fi folosit acest buton la 12V in loc de 24V?
Tensiunea nominala a LED-ului este de 24V. Utilizarea la 12V poate reduce semnificativ intensitatea luminoasa sau LED-ul poate sa nu functioneze corect; se recomanda respectarea tensiunii indicate.
Care este diferenta dintre contactul NO si NC la acest buton?
NO (normal deschis) inseamna ca circuitul este deschis in repaus si se inchide la apasare, iar NC (normal inchis) functioneaza invers. Ambele variante sunt disponibile pe acelasi buton prin pinii dedicati, alegerea facandu-se la conectare.

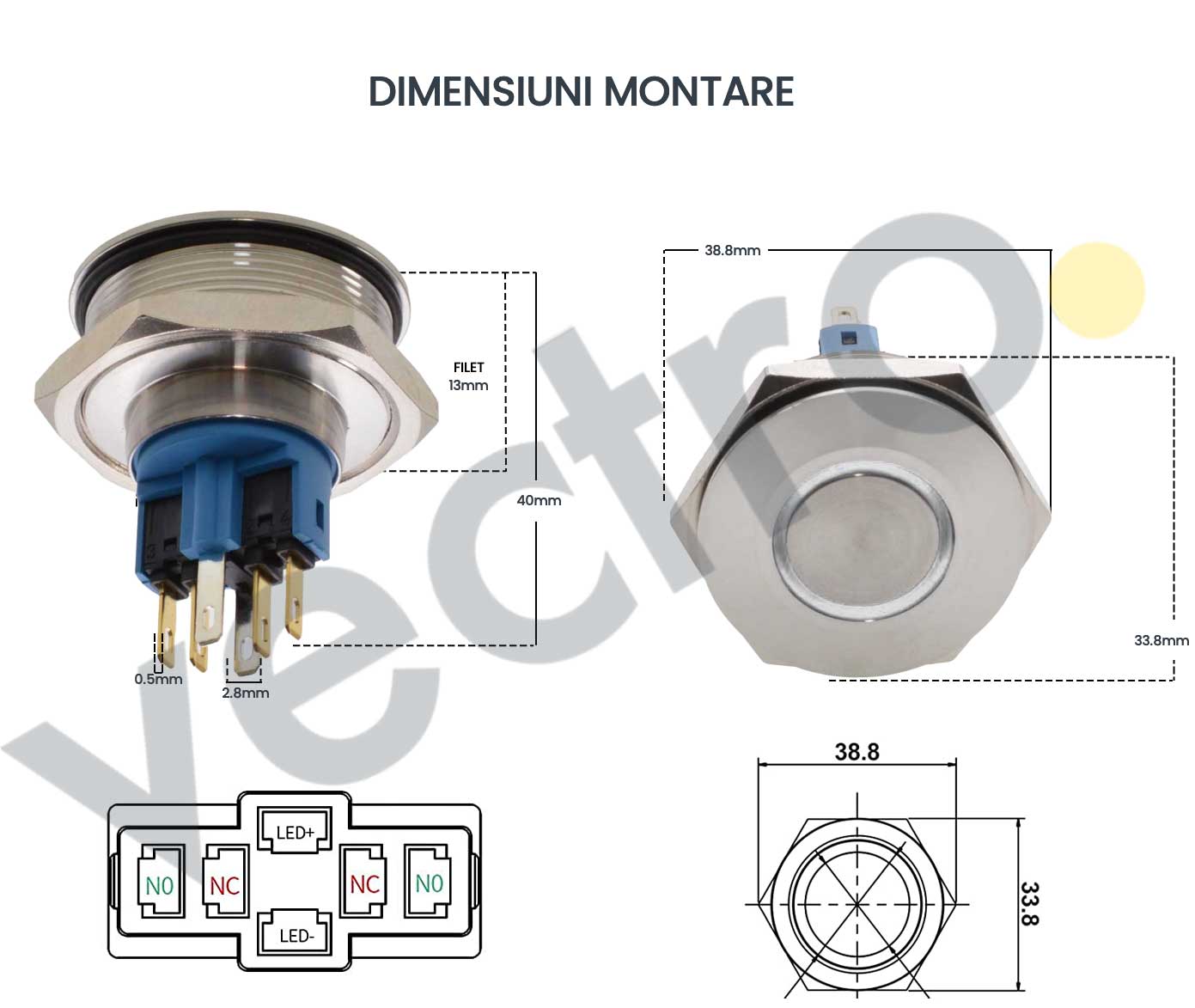

Specificatii tehnice
| SKU | EAZ-BP070 |
| Diametru montare | 30 mm |
| Filet | M30, lungime filet 13 mm |
| Lungime totala | 40 mm |
| Diametru exterior cap | 38,8 mm |
| Diametru exterior corp | 33,8 mm |
| Tensiune LED | 24V |
| Culoare LED | Rosu, inel iluminat |
| Tip actiune | Cu retinere (latching) |
| Numar pini | 6 pini (2 LED+ / LED-, 4 contact: 1NO + 1NC) |
| Tip conectare | Conector 6 pini (2,8 mm / 0,5 mm) |
| Material carcasa | Otel inoxidat |
| Contacte | Aliaj de argint |
| Curent nominal | 5A |
| Nivel de protectie | IP67 / IK09 |
| Presiune de lucru | 500 gf |
| Temperatura de functionare | -20°C pana la +85°C |
| Cuplu de strangere | 5 - 14 Nm |
| Cursa mecanica | 2,0 mm |
| Rezistenta de contact | max 50 mOhm |
| Rezistenta de izolare | max 1000 mOhm |
| Certificare | CE |
Garantie si suport
Produsul beneficiaza de garantie legala de 2 ani conform legislatiei romane in vigoare. Retur acceptat in 30 de zile de la data primirii, in conditiile in care produsul nu a fost montat sau deteriorat. Livrare rapida prin curier pe teritoriul Romaniei, cu confirmare de expeditie prin e-
