Buton Push 22mm cu Revenire, 12-24V, Led Verde, Mufa inclusa, ElectroAZ
Disponibil în stoc
-
Livrare estimata : 07 Sun - 11 Thu
Buton push 22mm cu LED verde pentru aplicatii industriale

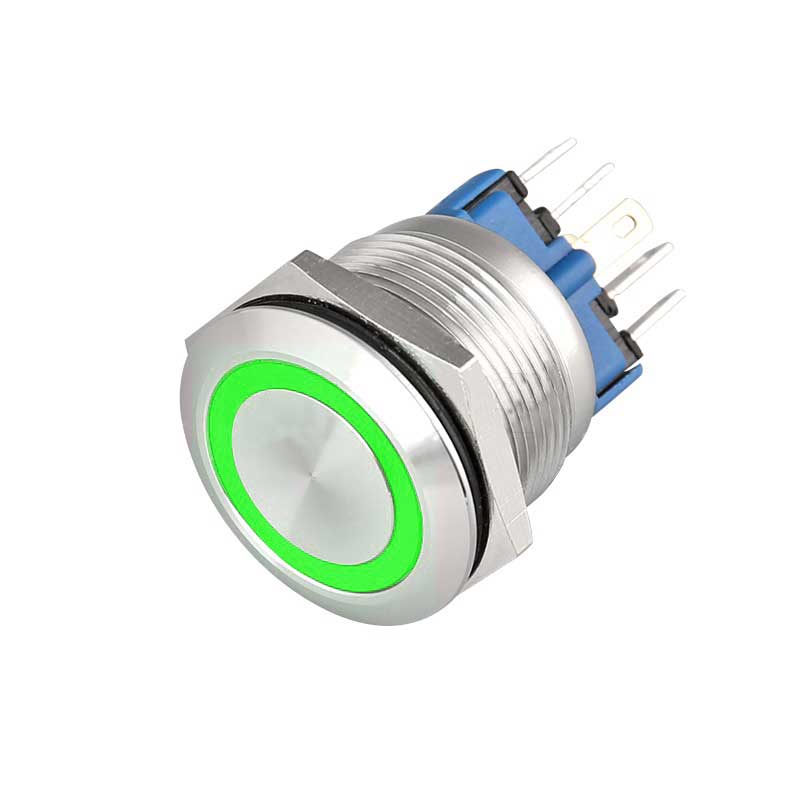

Butonul push metalic 22mm cu LED verde este solutia compacta si robusta pentru panouri de comanda, utilaje industriale, ascensoare si aplicatii auto. Cu corp din inox si protectie IP65, rezista la umiditate si vibratii, mentinandu-si functionalitatea in conditii dificile. Mufa cu fire pre-montate de 150mm este inclusa in pachet, eliminand timpul pierdut cu cablarea manuala a pinilor.
Ce obtii cu acest produs
- Conectare rapida datorita mufei cu 5 fire incluse in pachet, cu codificare cromatica clara pentru fiecare pin
- Compatibil cu sisteme de 9-30V DC, functionand stabil atat la 12V cat si la 24V fara ajustari suplimentare
- Corp metalic din inox cu clasa de protectie IP65 si IK09 — rezistent la stropire cu apa si la lovituri accidentale
- Dubla configuratie de contact NO si NC disponibila simultan, adaptandu-se la orice schema electrica existenta
- LED-ul verde poate fi configurat sa se aprinda doar la apasare sau permanent, in functie de modul de cablare ales
- Instalare directa in gaura de 22mm — piulita de fixare si inel de etansare din cauciuc sunt incluse
Cum functioneaza si cum se instaleaza

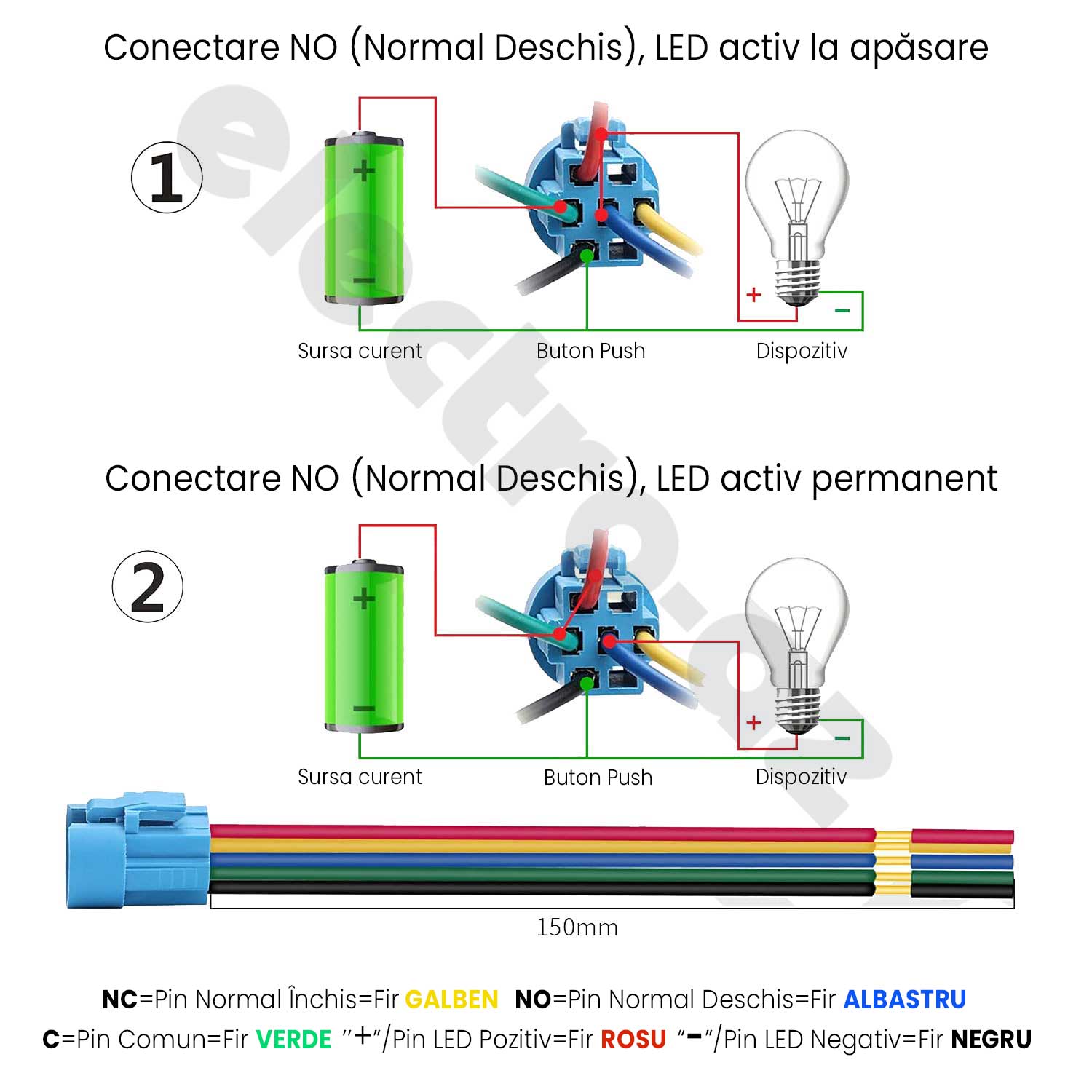

Butonul push 22mm se monteaza intr-o gaura de diametru 22mm prin insurubare cu piulita inclusa, fara scule speciale. Cei 5 pini sunt identificati prin culoarea firelor: rosu pentru LED pozitiv, negru pentru LED negativ, verde pentru pinul comun, albastru pentru NO si galben pentru NC. Conectarea se face conform diagramelor incluse, cu posibilitatea de a alege intre LED activ la apasare sau LED permanent aprins.
Intrebari frecvente
Functioneaza acest buton la 12V sau doar la 24V?
Butonul functioneaza in intervalul 9-30V DC, astfel incat atat 12V cat si 24V sunt tensiuni complet compatibile fara nicio modificare.
Mufa cu fire este inclusa sau trebuie cumparata separat?
Mufa cu 5 fire colorate de 150mm este inclusa in pachet, gata de conectat.
Ce inseamna contact NO si NC si cum aleg varianta potrivita?
NO (Normal Deschis) inseamna ca circuitul se inchide doar la apasare, iar NC (Normal Inchis) inseamna ca circuitul este inchis in repaus si se deschide la apasare. Acelasi buton ofera ambele optiuni prin alegerea pinilor corespunzatori.

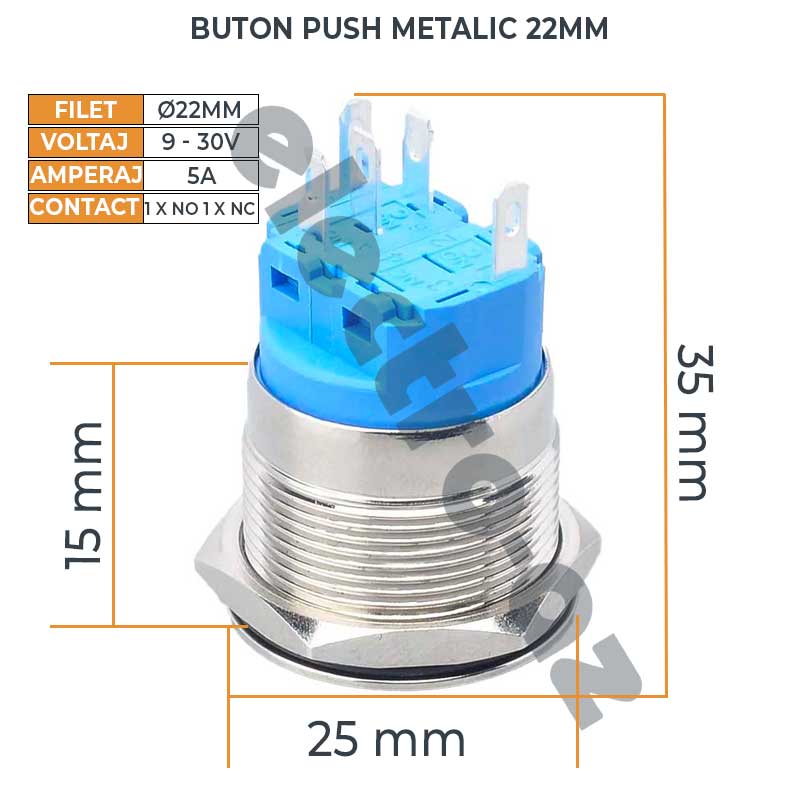

Specificatii tehnice
| Diametru filet | M22 mm |
| Diametru cap buton | 25 mm |
| Adancime montare | 15 mm |
| Lungime totala | 35 mm |
| Tensiune de alimentare | 9 - 30V DC |
| Curent maxim | 5A |
| Tip contact | 1x NO, 1x NC |
| Numar pini conectare | 5 pini (2 LED + 3 contact) |
| Lungime fire mufa inclusa | 150 mm |
| Culoare LED | Verde |
| Tip actionare | Cu revenire (momentan) |
| Material corp | Inox 304/316 |
| Clasa de protectie | IP65 |
| Rezistenta la impact | IK09 |
| SKU | EAZ-BP011 |
Garantie si suport
Produsul beneficiaza de garantie legala de 2 ani conform legislatiei romane in vigoare. Acceptam returul in termen de 30 de zile de la primirea comenzii, fara a fi necesara o justificare. Livrarea se efectueaza prin curier rapid, cu confirmare de expediere si posibilitate de urmarire colet.
